MD Verti


Wall bracket adjustable
Vertical continuous profile
Screw in the same colour as the panel
Anchoring to existing construction
Wall brackets and profile in the desired RAL colour
System made in aluminum

Fragment size: 1,200 x 1,200 mm
Wall brackets: 6 pieces
Profiles: 2 pieces of 1,2 m1
Anchors: 12 pcs. mounting wall bracket to existing construction
Screws: 12 pieces in the same colour as system
Torx screws: 10 pieces in the same colour as the panel

System information

  • Distance between panel and existing wall at least 50 mm
  • Screw fixing panel heart to heart 300 mm
  • Tolerances that can be collected: 20 mm
  • System can be attached to any background
  • Profiles are centred heart to heart at 600 mm
  • Wall brackets are placed heart to heart at 300 mm
  • With an additional option, the profile can be reinforced, allowing a greater relaxation
View the details
Busan South Korea Facade with Expanded metal

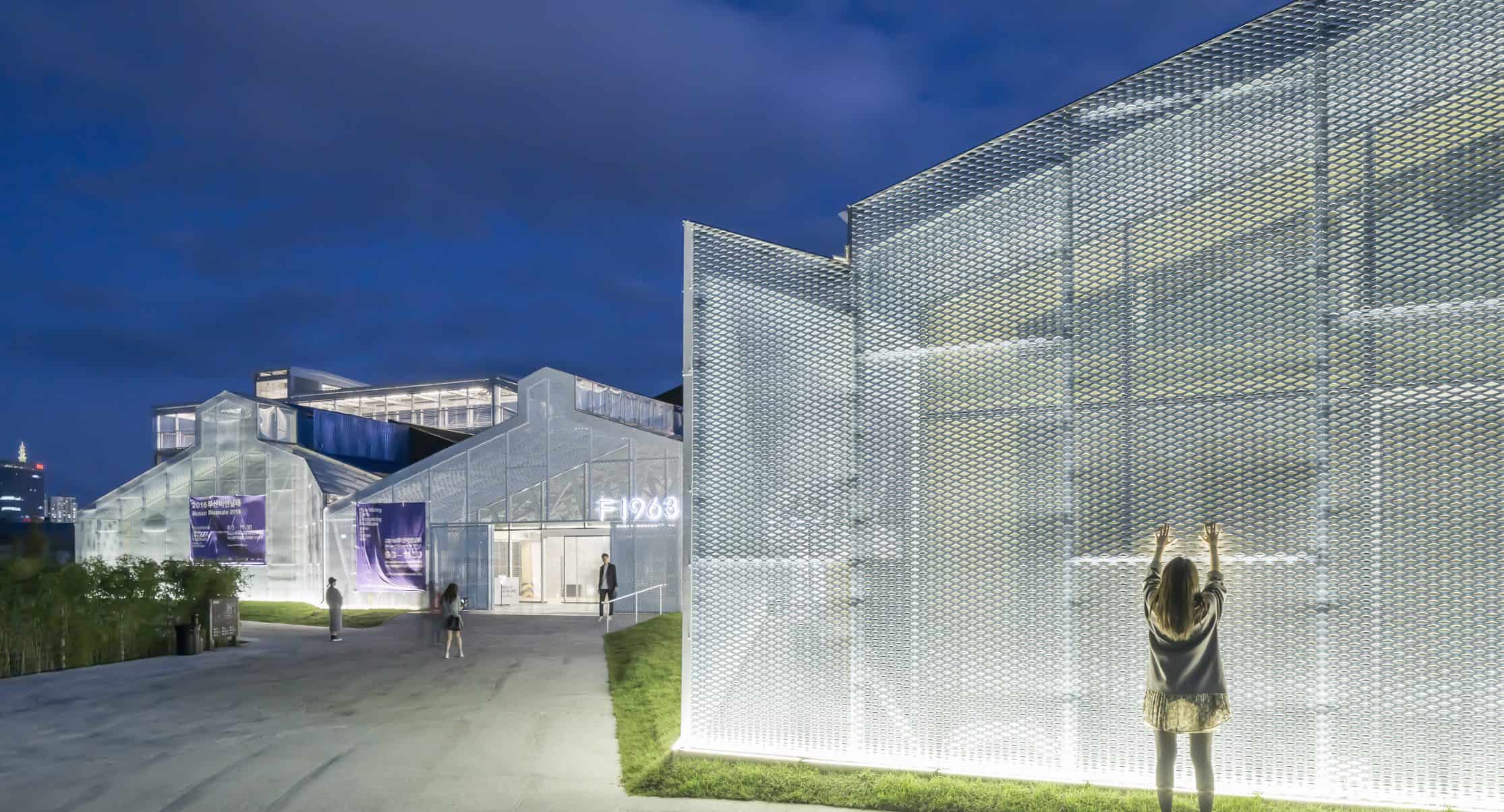

Factory 1963 Busan
Empereur Brussels

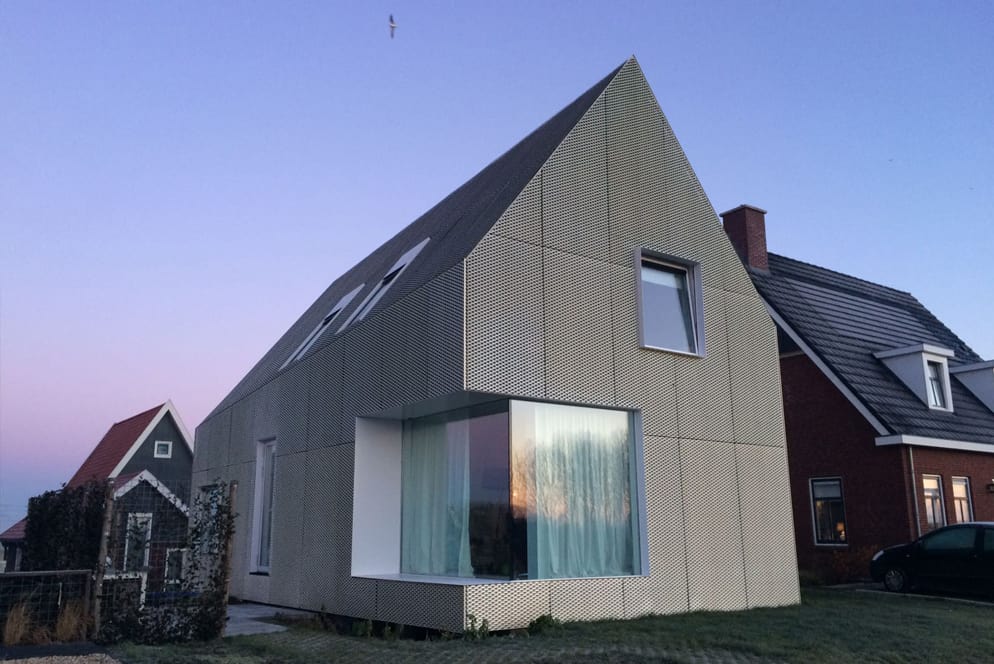

Biezenhuis Grafhorst
